TnG Gage Systems
Shop-floor gauges built for the machine side. 1- and 2-channel piezo, probe and LVDT digital gauges with bright 7-segment or TFT displays, ready to connect to monitoring and offset correction.
Why in-process gauging
Measurement away from the machine
Parts walk to the inspection room while the machine keeps cutting.
Readings that are not recorded
Manual instruments give a value but no history, no trend and no proof.
No link to correction
A measured deviation still has to be interpreted and typed into the CNC by hand.
The range
1-channel piezo gauge

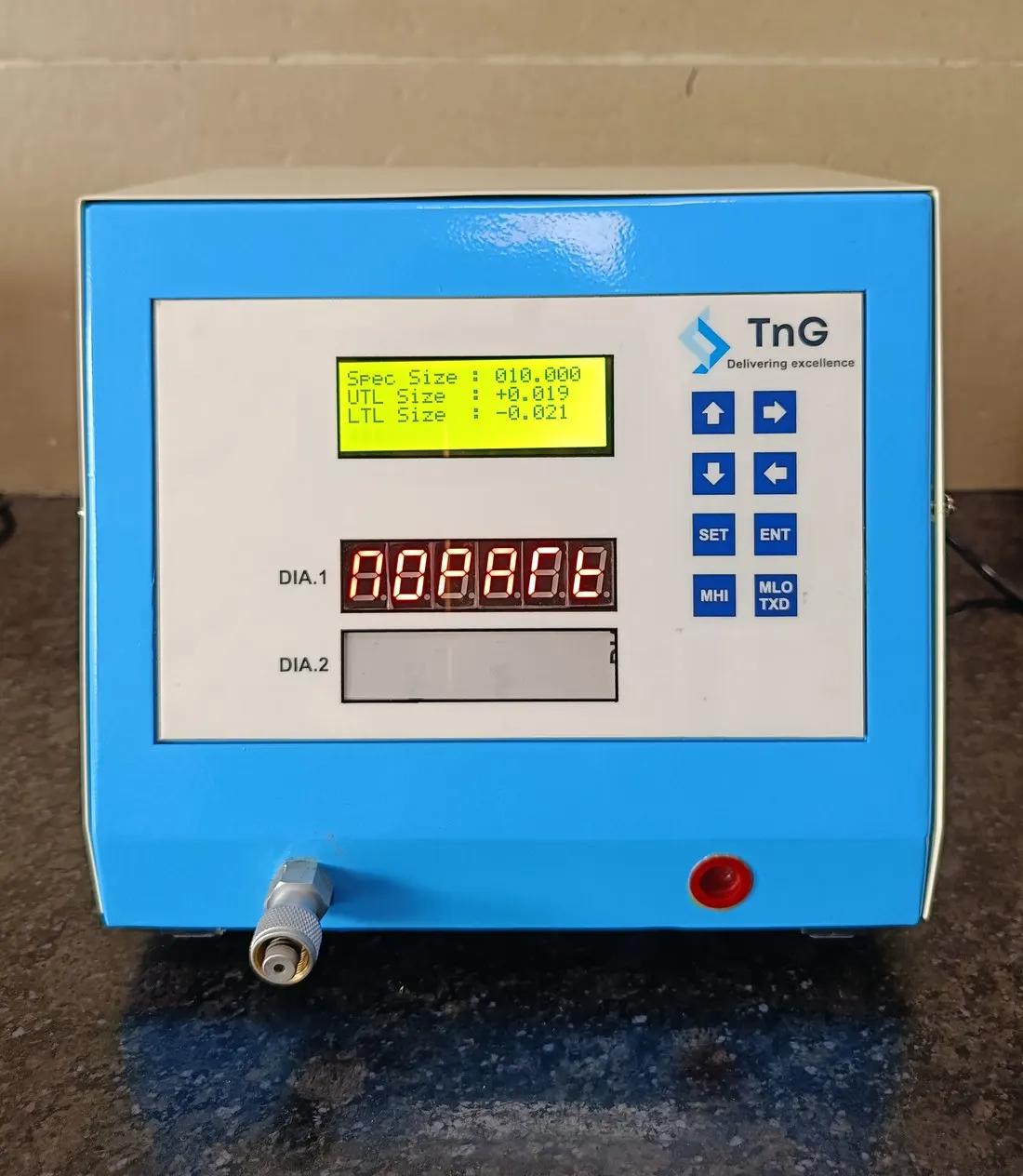

Single-dimension gauging with a clear 7-segment readout and LCD status display.
2-channel piezo gauge

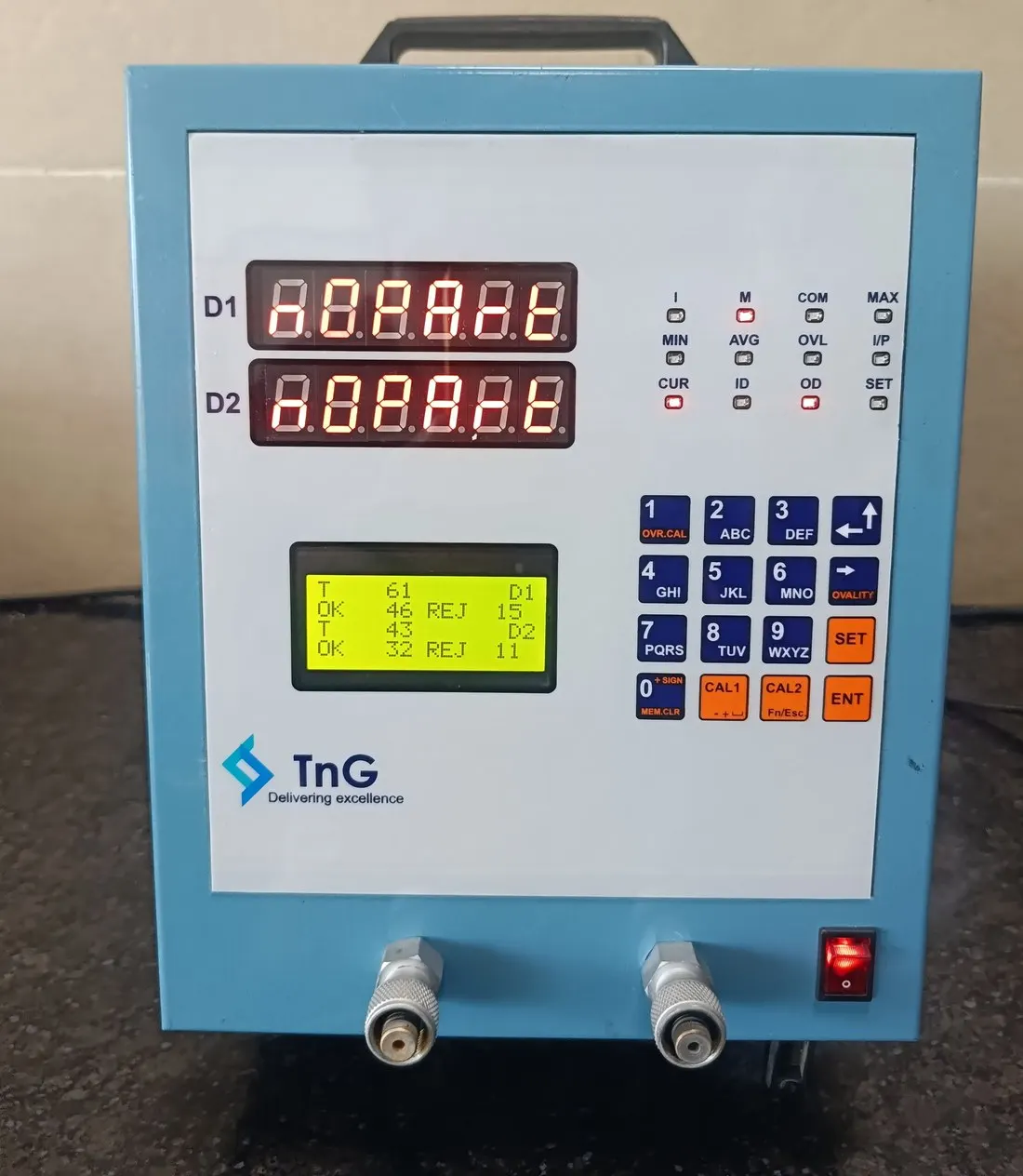

Two dimensions measured together, each with its own readout.
Piezo + probe combinations

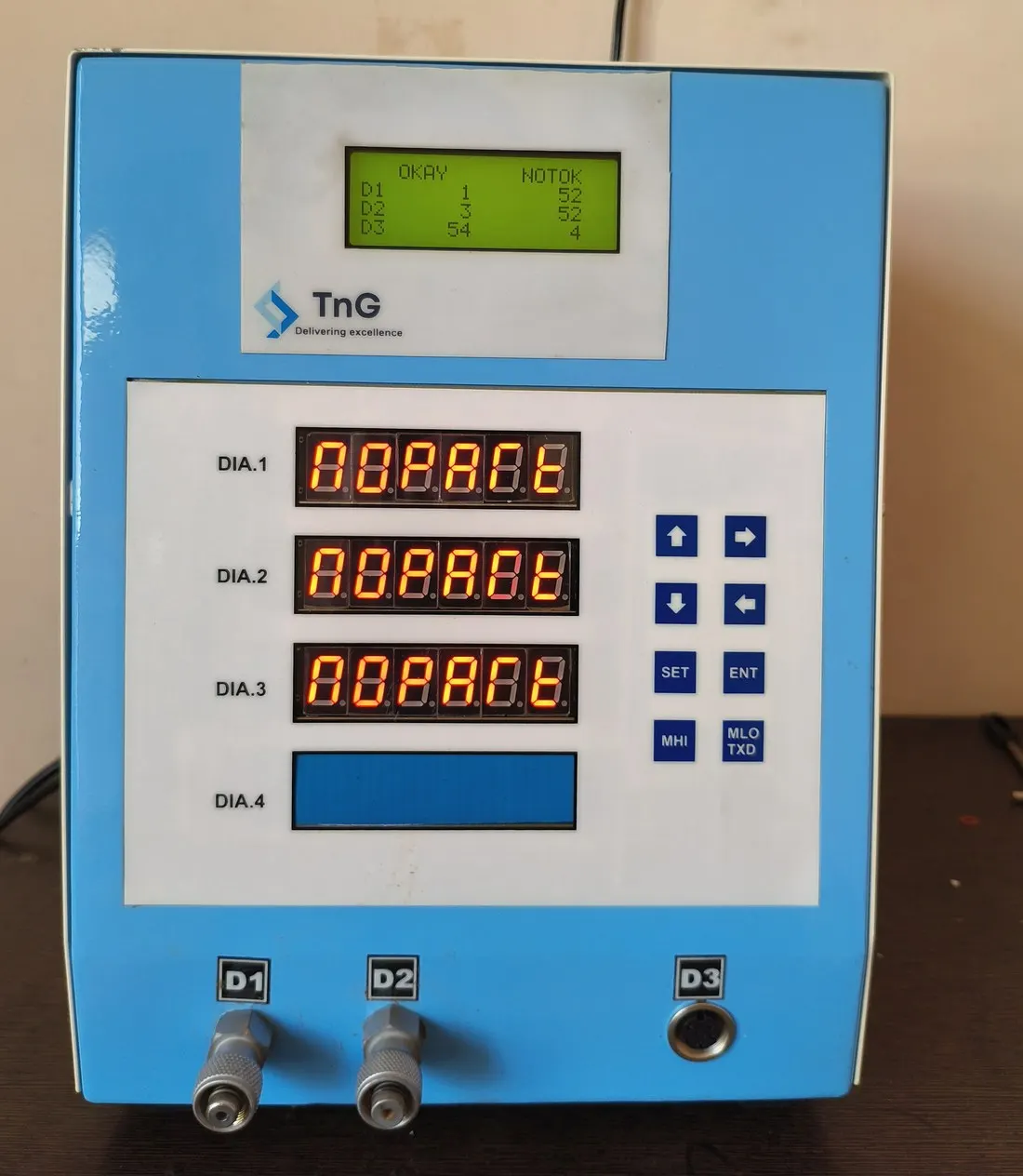

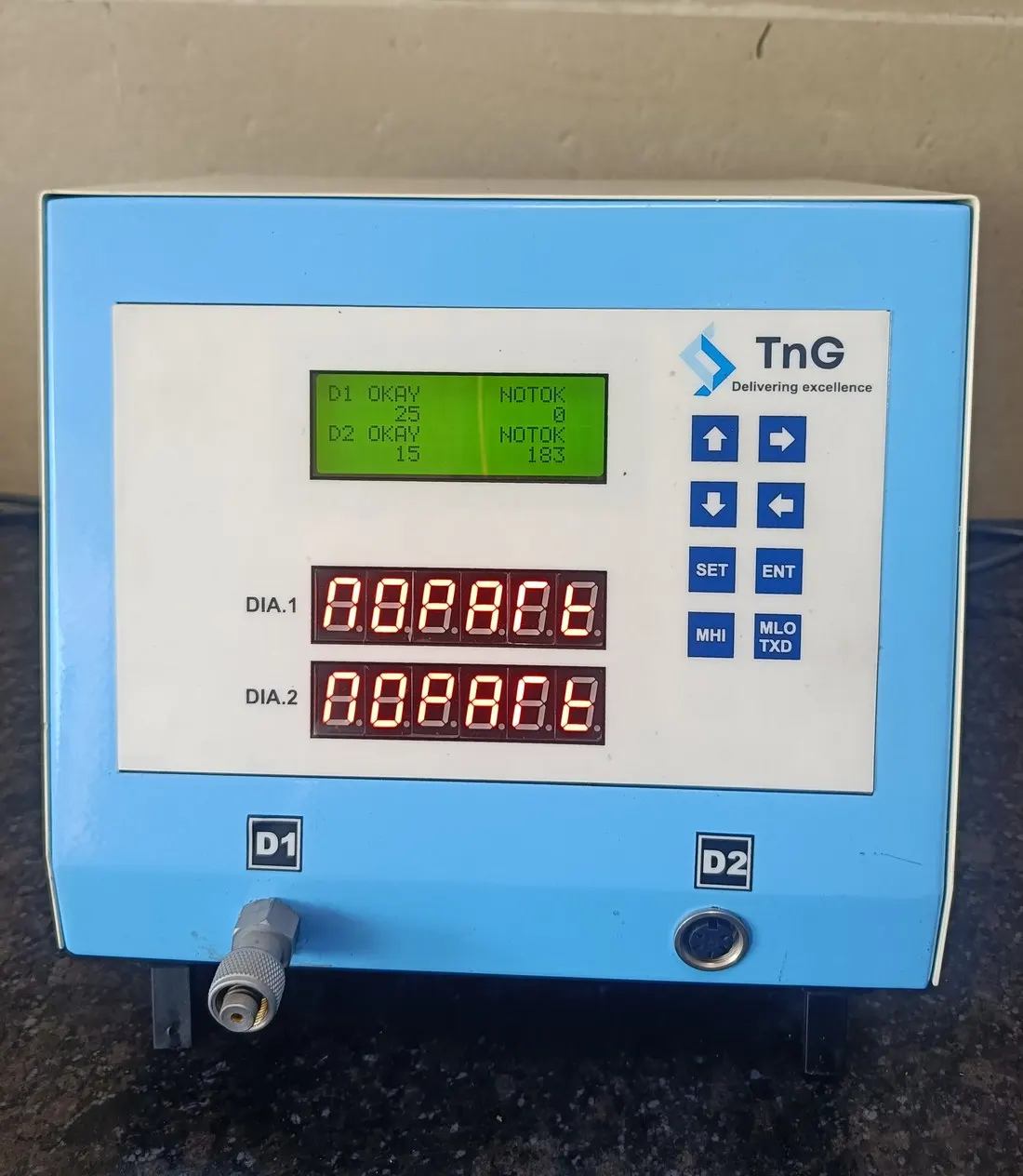

1-channel piezo with 1 probe, 2-channel piezo with 1 probe, and 2-channel piezo with 2 probes, for parts with several critical dimensions.
TFT display gauges

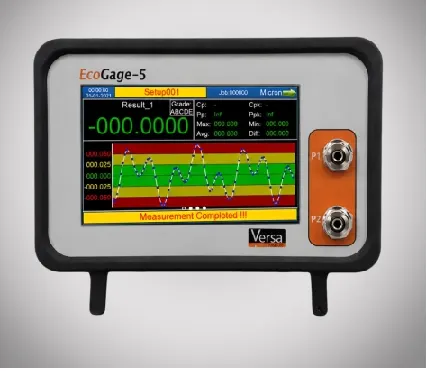

Colour TFT models for piezo and LVDT, with an analogue-style scale, tolerance colours and on-screen results.
Measurement software

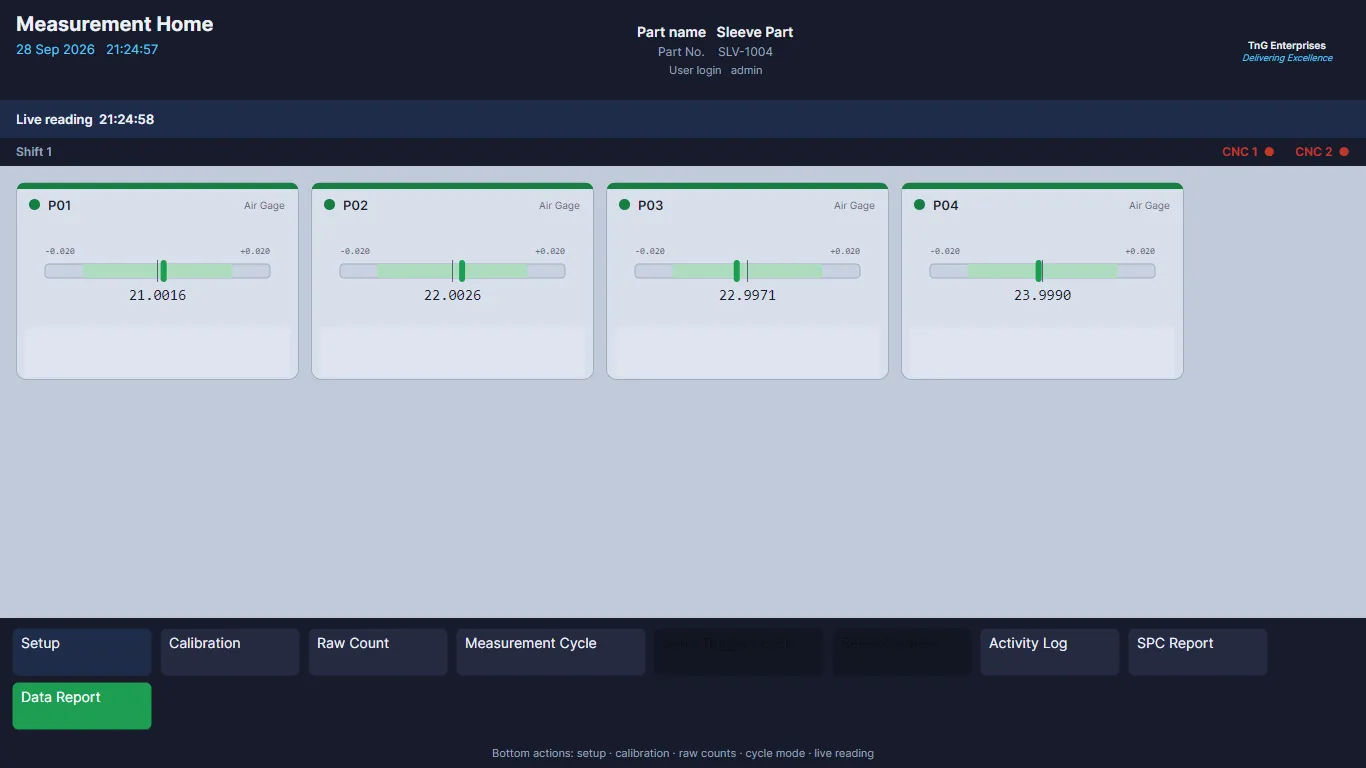

Live readings per parameter on tolerance bars, calibration with masters, raw-count monitoring, measurement cycle and data reports.
Ready to connect
Readings can feed TnG Machine Monitoring (SPC, rejection alerts) and TnG Offset Master (automatic wear-offset correction).
The range, close up
Every TnG gauge can be used on its own at the machine, or connected. Connected to the Machine Monitoring System its readings feed SPC, rejection alerts and the quality rate of OEE. Connected to Offset Master its result corrects the CNC wear offset automatically.
Tell us the part drawing and the dimensions you need to control, and we will recommend the gauge configuration.
Specifications
| Channels | 1 or 2 piezo channels, plus up to 2 probe channels |
|---|---|
| Sensors | Piezo, probe, LVDT |
| Display | 7-segment LED with LCD status, or colour TFT |
| Resolution / accuracy | To be confirmed per model |
| Data output | To be confirmed (CSV for Offset Master; interface for MMS) |
| Power supply | To be confirmed |
Talk to us about Digital Gauges
Share your machine list and controller details. We will review compatibility and propose a pilot scope for your plant.
The Digital Gauges brochure is being updated. Ask for it and we will send it on email or WhatsApp.
